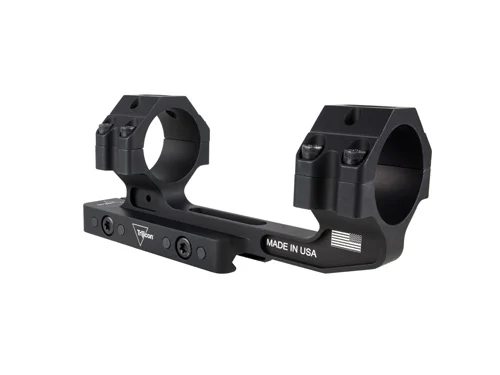

CANTILEVER MOUNT – BLACK, FITS 30MM TUBES, 1.535″H
CANTILEVER MOUNT – BLACK, FITS 30MM TUBES, 1.535″H
$249.99
Out of stock
Cantilever Mount
The Trijicon Cantilever Mount features a 30mm tube, and is designed to keep the optic as low as possible for hunting and long range precision rifle applications. Featuring a Mil-Spec drop test rated 6061-T6 aluminum design and a flush mounting bolt configuration for a sleek side profile.
The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.
Designed specifically for variable power optics, this lightweight mount is perfect for mounting Trijicon Variable power optics with an objective lens up to 56mm on any weapon platform with a full Picatinny rail. Trijicon Cantilever Mounts at a height of 1.535″ will also match the standard height above rail for all clip-on devices.
– Matte black anodized finish
– Made in the USA
Distance From Top of Mounting Rail to Optical Axis:
1.535″
Fits Objective lens up to 56mm
Matches height above rail for all potential clip-on devices
Torque Spec (Rail):
Can be Tightened To: 30-38 in. / lbs.
Torque Spec (Ring Caps): 14-16 in. / lbs.
NOTE: Fits Objective lens up to 56mm
Description:
- Tube Size 30mm
- Housing Material 6061-T6 Aluminum
- Finish Matte Black
- Length 6.1 in (154.94mm)
- Width 1.95 in (49.53mm)
- Height Above Rail (in/mm) 1.535″ in. (38.99mm)
- Feature Slimline Mounts
 Your Trusted Online Firearms Store! Shop with Confidence!
Looking for the best prices on CANTILEVER MOUNT – BLACK, FITS 30MM TUBES, 1.535″H by Trijicon? Rack it Back Armory proudly serves Mebane with unbeatable pricing, expert service, and exclusive rewards.
Best Prices in Mebane
 Earn Rewards on Every Purchase.
 Special Bundles & Firearm Packages Available.
 Safe & Secure Checkout Shop with confidence using trusted payment options.
 Compliance-Ready All sales follow federal, state, and local firearm laws.
 Limited Stock Visit Us Today or Shop Online Before They’re Gone!Â
BE ADVISED: THERE ARE NO REFUNDS ON AMMUNITION OR FIREARMS TRANSACTIONS
| UPC | 719307618848 |
|---|---|
| Manufacturer | Trijicon |
| Manufacturer Part Number | AC22054 |
| Mount Type | Picatinny Rail |
| Mount Height | 1.535" |
| Model | Cantilever |
| Length | 6.10" |
| Product Type | Mount |
